TDMimports Drag Spec Big Brake kit is designed for high performance street and track usage. Each kit we take times to build them to ensure the quality control. All of our big brake kit is designed to direct bolt on to stock knuckles. Another thing great about our kit is the weight, if you are looking for high performance and save few pounds off your unsprung weight then this is the kit that you will need. This kit is designed for 13inch slicks, and off road usage only.

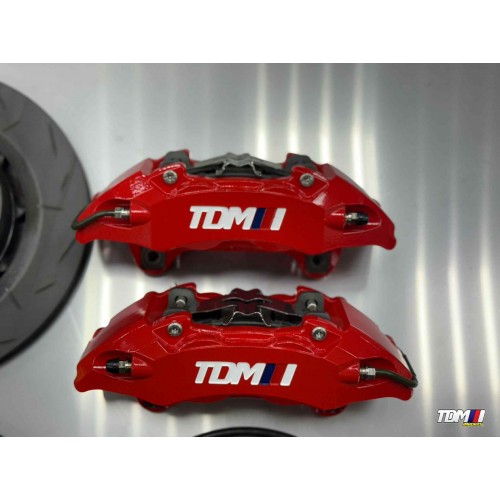

Calipers

In order to have a reliable brake system, TDMimports calipers request a very high standard in materiel choice. Here at the TDMimports, we utilize 6066 billet alloy and T651 heat treatment process which is 30% stronger than standard 6061 billet alloy and less likely to deform during extreme hot temperature.  On the other hand, our brake caliper pistons material selects the 7075 billet alloy and the T651 heat treatment. With the T651 it enhances its durability and longevity twice than the standard heat treatment process.

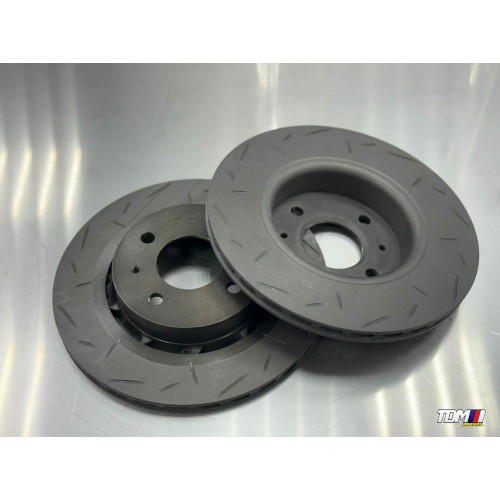

Rotors

To meet above the average when producing reliable brake discs, we select better quality FC-25 steel mixture with high cast carbon. The maximum temperature is capable of 1000 Celsius.  It provides higher level of stress and temperature without excessive material expansion or distortion. In current market, most rotors are made of lower grade steel for instance FC-20 and FC-22 heat expansion by as much as 1.2-1.5mm when reaching to 500 Celsius.  However, TDMimports’ rotors will only expand around 0.45 cm in comparison.  In other words, we don’t cheat on our products when it comes into reliability for stopping power.

Brake Pads

To keep it simple and easy to understand, we have narrow down our brake pads in 3 specs which can suit wide range usage.

Street Pads:

• Nao composite material  (Non Asbestos Organic)
• 50-650 degree Celsius
• Friction coefficient 0.45MU

Track Pads:

• Nao composite material  (Non Asbestos Organic)
• 50-720 degree Celsius
• Friction coefficient 0.51MU

Pro  Pads:

• Metallic material
• 270-900 degree Celsius
• Friction coefficient 0.55MU

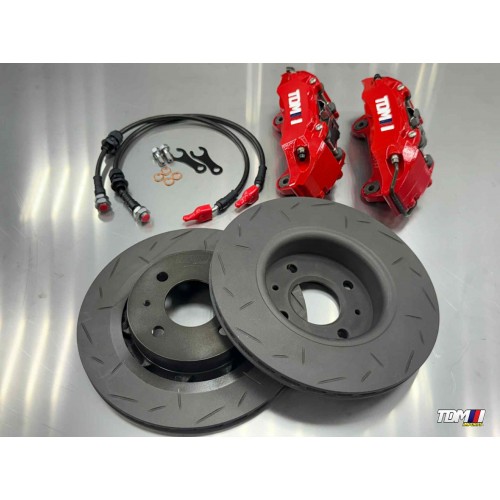

The kit

TDMimports Big Brake kit includes:

• A pair of 2 caliper body
• A pair of 2 rotors

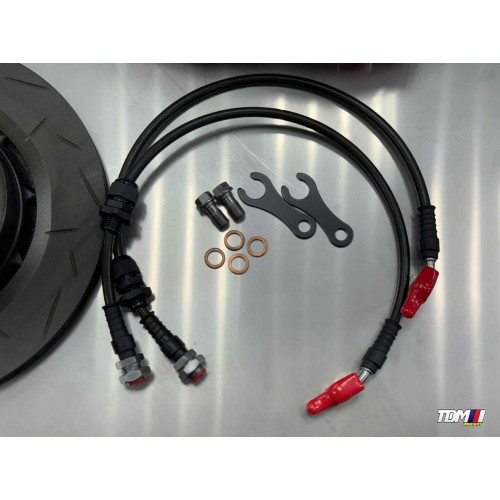

• A pair of 2 stainless brake lines
• Two pairs of 4 brake pads with built in shins
• 2 stainless brake line bolts
• 4 stainless brake line washers
• 4 brake pads pins
• 4 brake pads insert pins
• 2 brake pads stopping shins

*Please email us for stock quantity check before ordering

This item is strictly for TRACK USAGE ONLY, we do not recommend daily

*If you have more questions please feel free contact us anytime at sales@tdmimports.com
